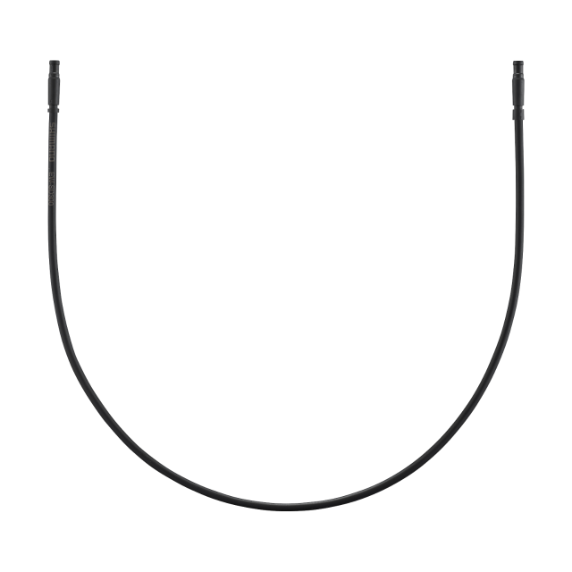

Shimano Di2 EW-SD300 Electrical Wire

The Connection of Precision.

The EW-SD300 is a high-tech, two-core wire that is significantly more compact than the previous generation SD50. This reduced diameter is a game-changer for modern internal cable routing, allowing it to slip through tight frame ports and integrated handlebars with far less friction. Despite its slim profile, it is engineered to be incredibly resilient, featuring robust, weather-sealed connectors that ensure a perfect digital signal whether you’re riding through a tropical downpour or a dusty gravel race.

Why the SD300 is a Critical Build Component:

• Ultra-Slim Profile: The thinner wire and smaller connectors allow for cleaner integration in modern aero frames and "hidden cable" cockpits, making the build process smoother for mechanics and home tuners alike.

• Plug-and-Play Reliability: Every connector features a satisfying, audible "click" that confirms a secure connection. This mechanical feedback ensures your shifting system is fully engaged and protected from the elements.

• Massive Versatility: One wire type handles it all. It is the universal standard for all 12Speed road Di2 systems and Shimano’s premium e-bike drive units, simplifying your parts list and maintenance kit.

• IPX8 Waterproofing: Designed to live in the most extreme environments. The connectors are fully sealed to prevent corrosion and signal loss, ensuring your derailleur responds instantly every time you tap the shifter.

• Enhanced Signal Speed: Optimized for the increased data requirements of 12Speed shifting, providing the low-latency communication needed for Shimano’s "Synchronized Shifting" and "Semi-Wireless" technologies.

• Broad Range of Lengths: Available in increments from 150mm up to 1600mm, ensuring you have the perfect fit for everything from a tight handlebar junction to a long reach through a mountain bike frame.

Technical Specifications:

• Model: EW-SD300

• System Compatibility: Di2 12Speed (Road) / EP8 & EP6 (E-Bike)

• Connector Diameter: ~3.45mm

• Wire Diameter: ~2.4mm

• Type: Two-core, E-Tube Project compatible

• Installation Requirement: Requires TL-EW300 tool for safe connection/disconnection

The Alegro Perspective: In our workshop, we call the SD300 "the wire that made mechanics' lives easier." The reduced size means no more fighting with tight bottom bracket junctions or headtube ports. While it’s a small part of a $3,000 Ultegra groupset, it’s the most important one. It’s the difference between a bike that shifts perfectly and one that leaves you stranded. Always keep a spare in your toolbox!

Thin Profile. Digital Precision. Connect your Performance with Shimano.
