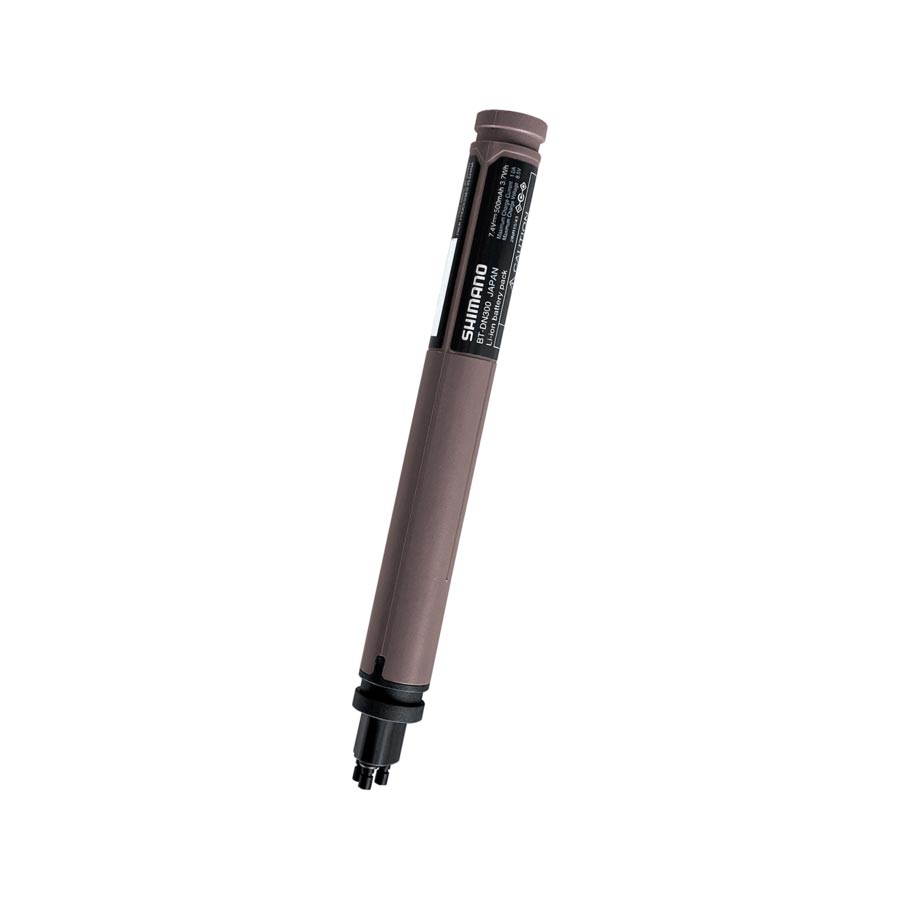

Shimano Di2 BT-DN300 Battery

The Core of the Connection.

The BT-DN300 is a significant departure from previous generations. It now serves as the central hub for the entire system, featuring three ports that utilize the thinner EW-SD300 wires. By housing the system's "brains" and power in one unit tucked safely inside your seatpost, Shimano has created a cleaner, more aerodynamic, and more resilient setup that is virtually impervious to the elements.

Why the BT-DN300 is a Build Necessity:

• Triple-Port Versatility: Features three SD300 ports, allowing for a direct connection to both the front and rear derailleurs. This "wired" connection to the derailleurs ensures maximum shifting speed and prevents signal interference.

• Exceptional Battery Life: Engineered to provide approximately 1000km of riding on a single charge. It’s a "charge and forget" component that lets you focus on the road for weeks at a time.

• Internal Integration: Designed to be hidden inside the seatpost or seat tube using a simple rubber grommet. This keeps the battery protected from road spray, vibration, and accidental impact while maintaining the bike's clean silhouette.

• Centralized Charging: In the new 12Speed ecosystem, you no longer remove the battery to charge. The BT-DN300 is charged directly through the port on the Rear Derailleur, making maintenance effortless.

• Firmware Intelligent: Works in perfect sync with the E-TUBE PROJECT app, allowing you to check battery levels, customize shifting speeds, and update system firmware via Bluetooth from your smartphone.

• Safety First: Built with multiple fail-safes to prevent overcharging and short-circuiting, ensuring your high-end electronics remain safe during the charging cycle.

Technical Specifications:

• Model: BT-DN300

• Chemistry: Lithium-Ion

• Voltage: 7.4V

• Capacity: 500mAh / 3.7Wh

• Ports: 3 x SD300 Type

• Mounting: Internal (Seatpost/Seat Tube)

• Compatibility: Shimano 12Speed Di2 (Road)

• Charging Cable: EW-EC300 (Sold separately)

The Alegro Perspective: The BT-DN300 is the unsung hero of the 12Speed revolution. While everyone talks about the derailleurs, this battery is what makes that instantaneous shifting possible. In the shop, we love how the three-port design simplifies cable management near the bottom bracket. It’s a small, light, and incredibly reliable piece of tech that forms the foundation of the world’s best-shifting bikes.

Digital Endurance. Internal Integration. Power your Performance with Shimano.
