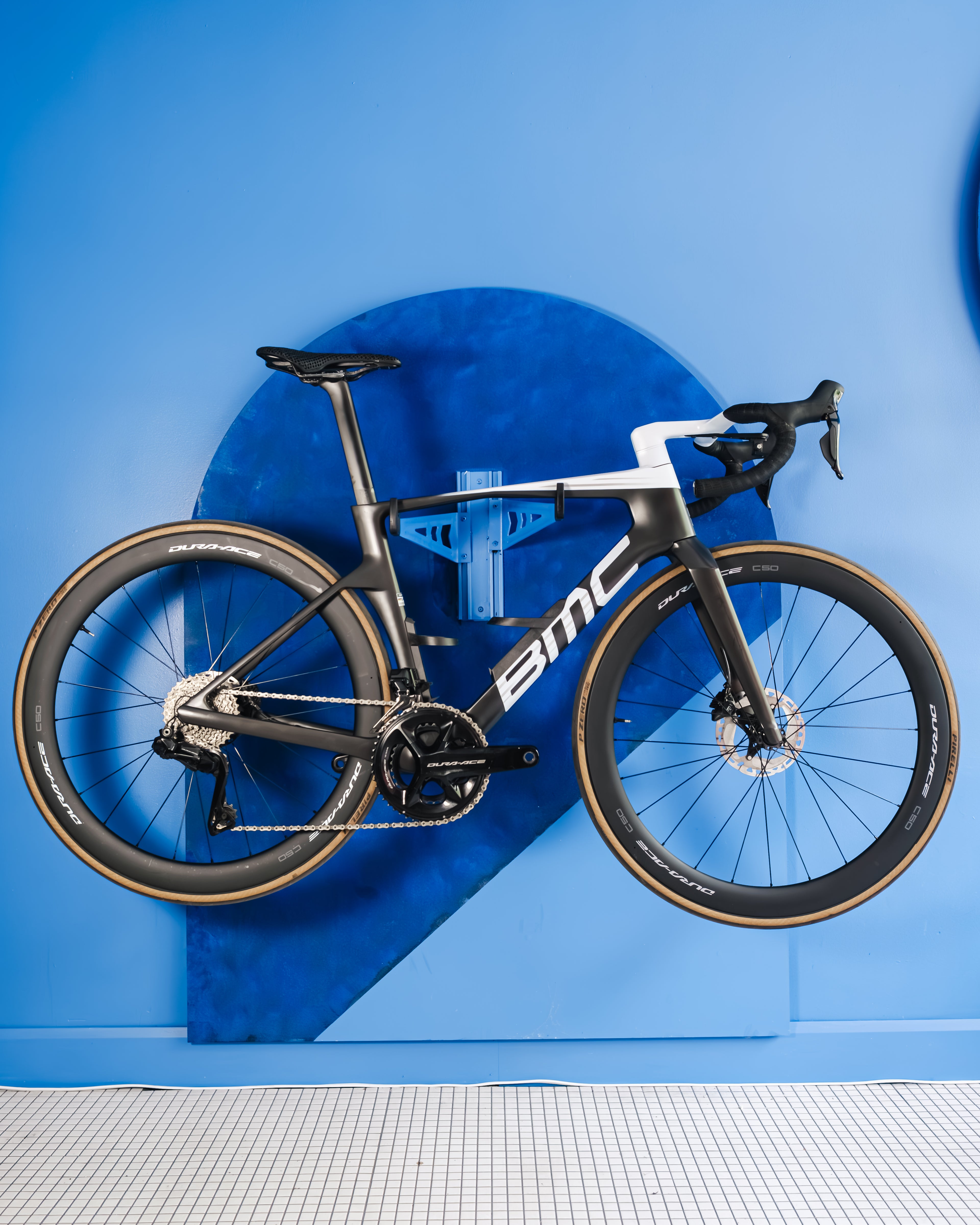

51cm BMC Teammachine R01 (Shimano Dura Ace R9270)

Formula 1 Aerodynamics. Swiss Precision.

The defining characteristic of the BMC Teammachine R 01 is its visually striking, hyper-optimized tube shaping. By taking Red Bull's elite CFD (Computational Fluid Dynamics) simulations and pairing them with BMC's carbon expertise at their Impec Lab, they completely reimagined how air flows across a road bike. The result is a premium TCC (Tuned Compliance Concept) Carbon frame weighing just 910g that behaves like an all-out aero bike without any of the sluggish, heavy handling compromises.

Why the Teammachine R01 Stands Alone at the Front:

• The Revolutionary Halo Fork: The ultra-wide parallel fork legs are unlike anything else in the pro peloton. By vastly increasing the inner fork spacing, BMC allows the turbulent air generated by the spinning front wheel to be shuttered cleanly away from the down tube, slashing overall drag.

• The Mariana Bottom Bracket: Named after the deepest trench in the ocean, this is the deepest, most muscular bottom bracket area BMC has ever built. This oversized structural block optimizes aerodynamic airflow transition onto the rear wheel while delivering instantaneous, rock-solid power transfer under high-wattage sprints.

• Integrated Aerocore Bottle Cages: The frame's down tube and seat tube are molded to house BMC's proprietary Aerocore cages. They blend seamlessly with the frame's profile, making the bike aerodynamically faster with water bottles than without them.

• ICS Carbon Aero Cockpit: Featuring progressive and highly focused racing ergonomics. The integrated, one-piece carbon handlebar and stem system features a narrow width at the hoods to pull your shoulders into a sleek aero tuck, transitioning to a wider flare in the drops for high-speed descending control.

• Stealth Dropout & Axle Design: The threaded side of the fork and rear dropouts are completely covered by a smooth carbon fairing. This eliminates drag-inducing turbulence around the axle threads while maintaining a clean, minimalist profile.

Technical Specifications:

• Frame: Teammachine R 01 Premium Carbon with Aerocore Design (ICS Technology, PF86 BB, 12x142mm Thru-Axle)

• Fork: Teammachine R 01 Premium Carbon with Halo Design (ICS Technology, 12x100mm Thru-Axle)

• Seatpost: Teammachine R 01 Premium Carbon (Frame-Specific, Aero Profile, 10mm & 25mm offset options)

• Cockpit: ICS Carbon Aero One-Piece Integrated Handlebar/Stem System

• Brake Mounts: Flat Mount Disc (Optimized for 160mm front and rear rotors)

• Maximum Tire Clearance: 30mm (Measured width)

• Drivetrain Compatibility: Electronic Shifting Only

• Frame Weight: ~910g

The Build:

1. Frameset & Cockpit

• Frame: BMC Teammachine R01 51cm

• Fork: BMC Halo

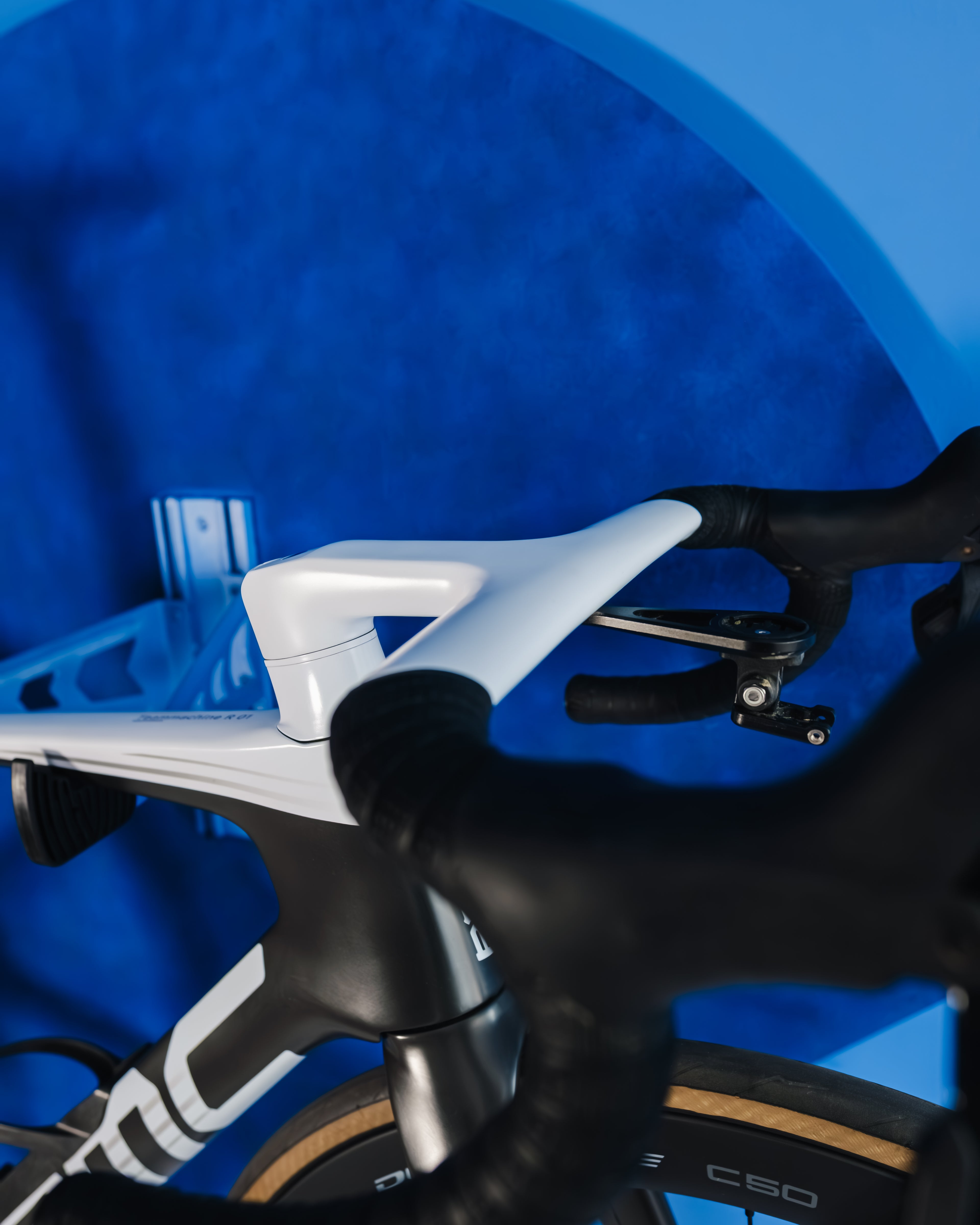

• Handlebar: BMC ICS Aero 36cm x 90mm

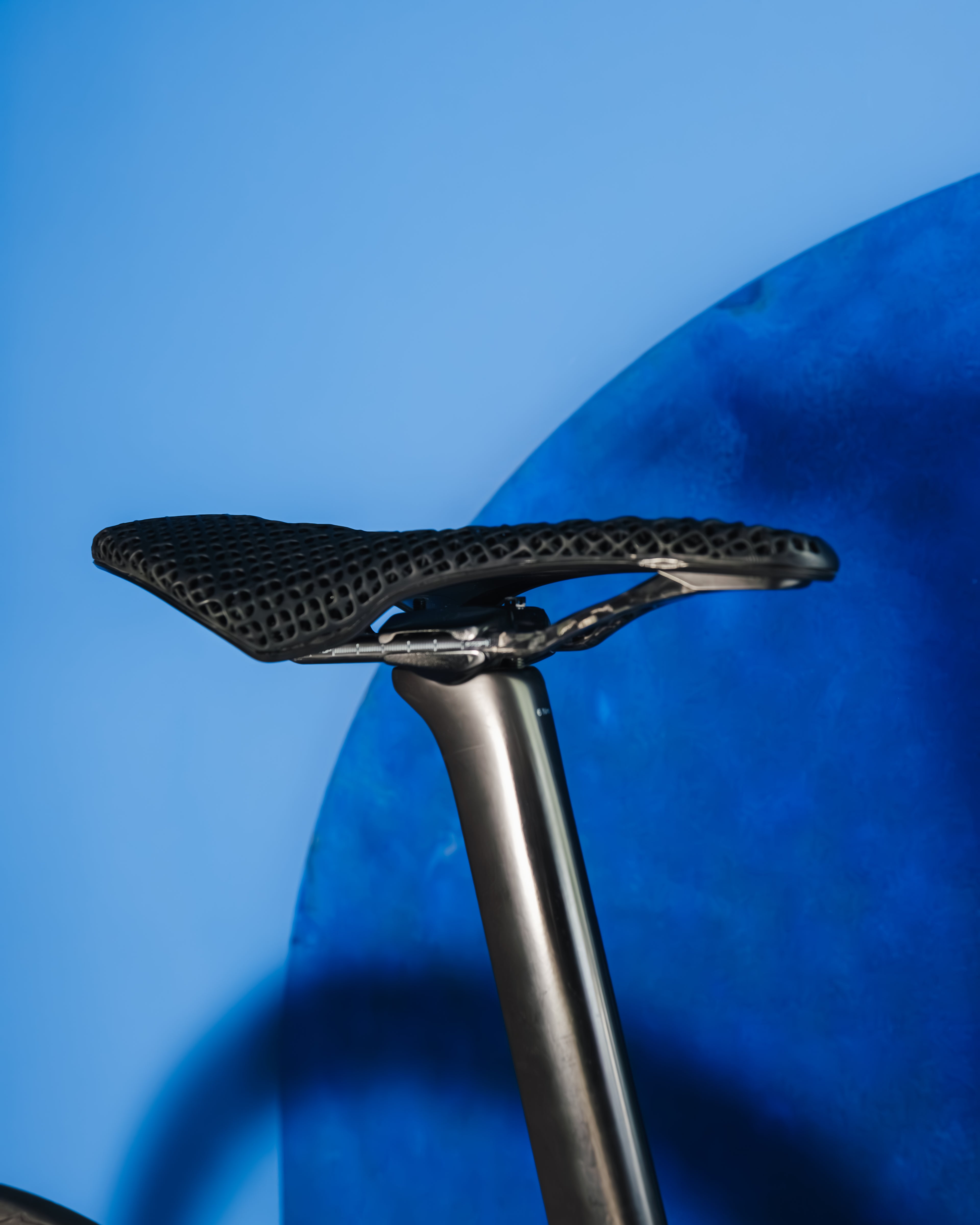

• Seatpost: BMC Aero

• Saddle: None

• Bar Tape: BMC OEM

2. Drivetrain (The Groupset)

• Shifters/Brake Levers: Shimano Dura Ace ST-R9270

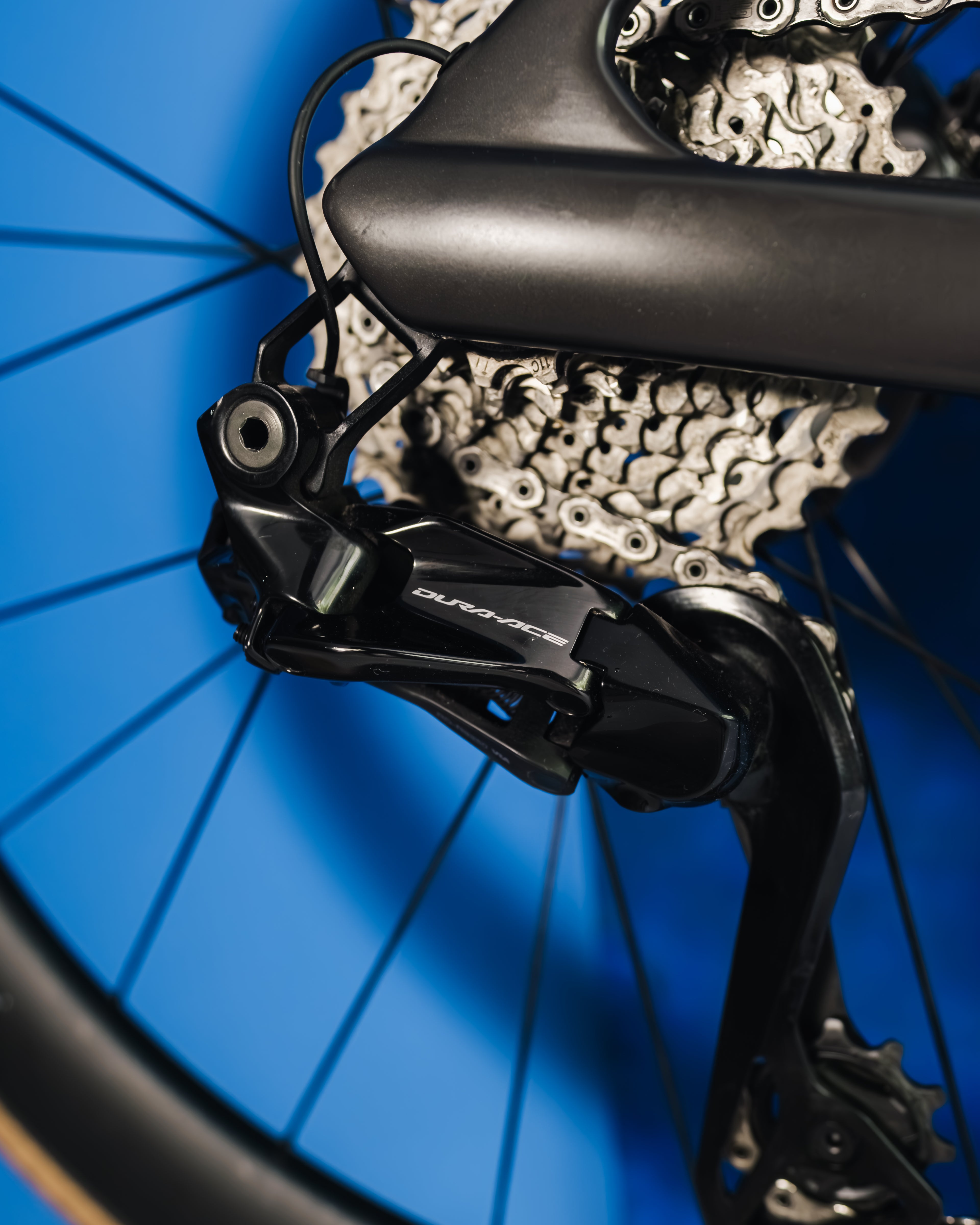

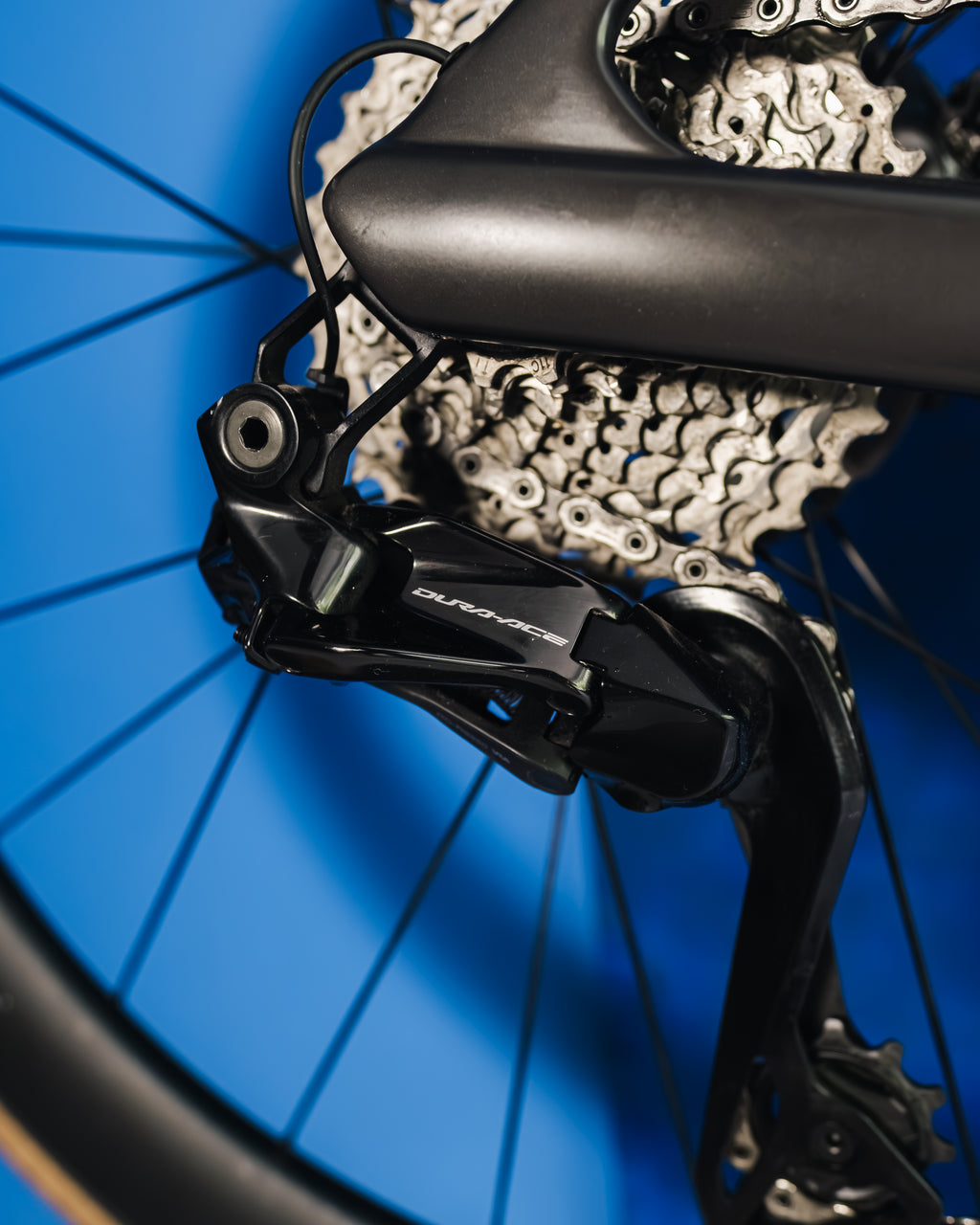

• Rear Derailleur: Shimano Dura Ace RD-R9200

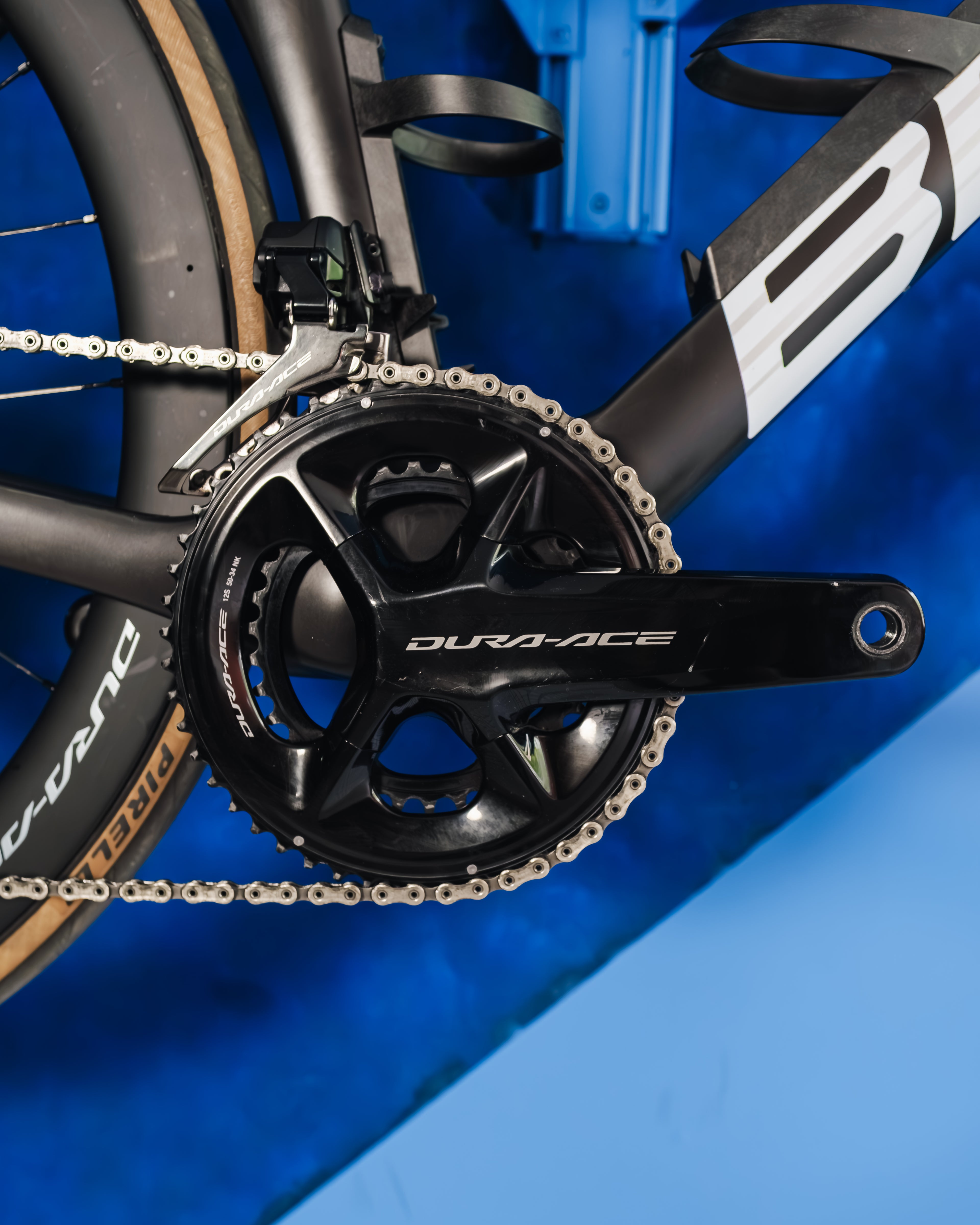

• Crankset: Shimano Dura Ace FC-R9200 170mm

• Chainrings: Shimano Dura Ace 50/34T

• Bottom Bracket: Shimano Hollowtech II BB86

• Cassette: Shimano Dura Ace 11-34T

• Chain: Shimano Dura Ace

3. Braking System

• Calipers: Shimano Dura Ace BR-R9270

• Rotors: Shimano RT-CL900 160/160mm

4. Wheelset & Rubber

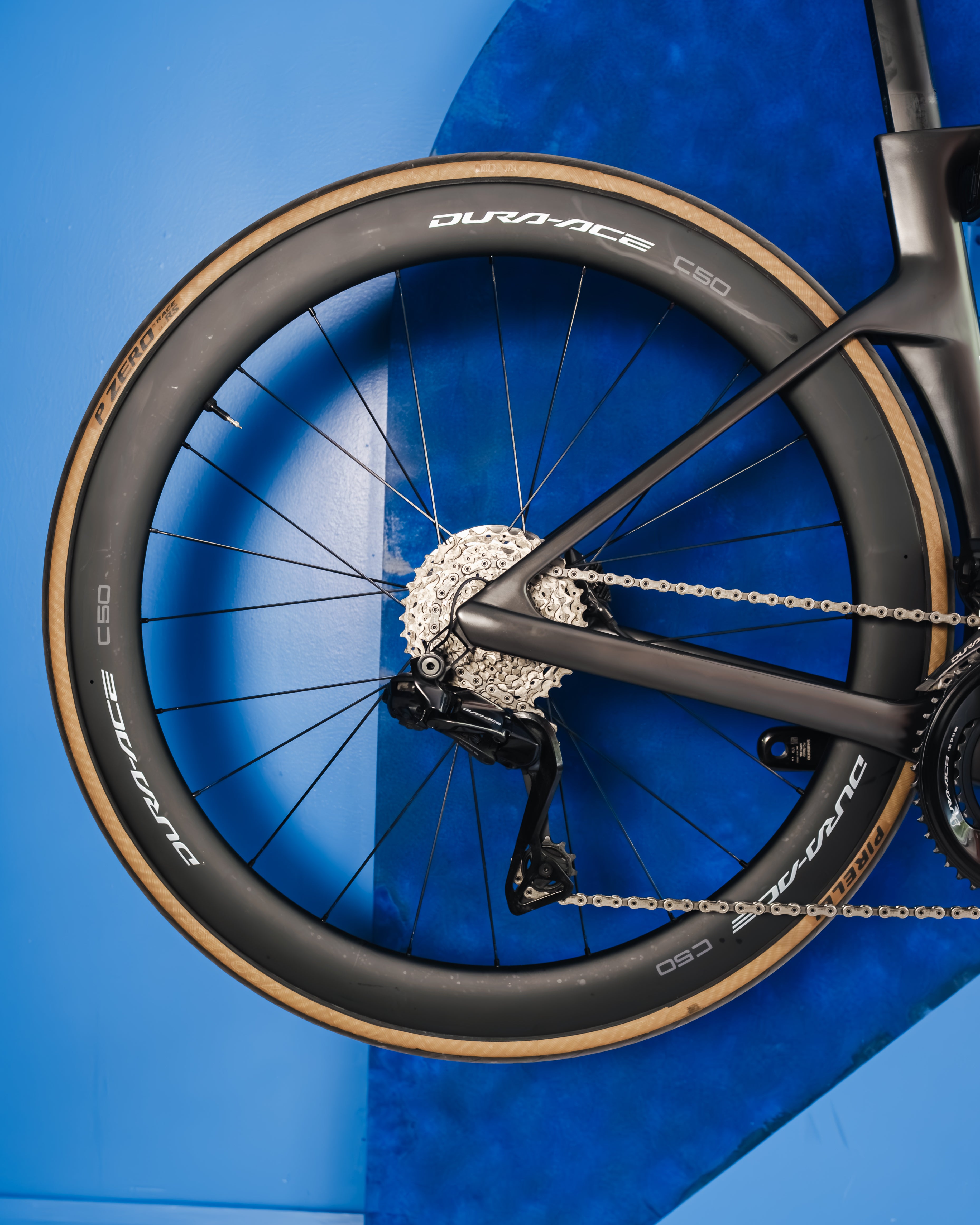

• Rims/Wheelset: Shimano Dura Ace WS-R9200 C50

• Tires: Pirelli P Zero Race TLR RS

• Tubeless: Shimano OEM valves w/Stan's Sealant


The Owner's Perspective: In the world of elite superbikes, the Teammachine R01 is an absolute marvel. Typically, "aero" road bikes feel incredibly fast on flat roads but feel heavy, wooden, and harsh the second you hit a steep climb. By working with Red Bull F1 aerodynamics, BMC bypassed those limits. The way the Halo fork routes air around the frame is pure genius, and the bike accelerates uphill with the snap of a pure climbing rig. If you are looking for a bike with zero compromises this is the bike that turns dreams into PRs.

Formula 1 Technology. Pure Swiss Speed. Redefine Racing with the BMC Teammachine R01.
